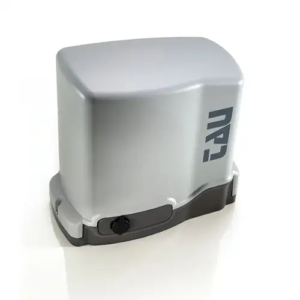

T-ONE3B

24 Volt. Automation for gates up to 400 Kg. Speed 14 m/min

P-350T-ONE3B DC sliding gate operator with encoder, complete with electronic control unit and built-in 433,92 MHz rolling code radio receiver. Maximum gate weight 400 kg.

Motor power supply	24 V DC - Intensive use
Gate weight	Max. 400 Kg
Type of use	Residential/apartment building use

Technical sheet Ask for a quote

FEATURES

• residential use
• for gates up to 400 kg
• low voltage DC gate operator
• encoder technology (no limit switches required)
• electronic control unit with built-in receiver
• only available in the kit version

PROS

• obstacle detection and crush prevention
• in accordance with EN 12453 standards
• works even during power outage thanks to the optional backup battery
• external emergency release available (optional, P/N 650ESE03)
• soft start and soft stop
• self-adjusting gate stroke through magnetic encoder

Video Tutorial

PROTECTION

The control panel is protected by a cover complete with buttons for programming and stroke adjustments without the use of tools. The diagnostic leds are easily visible and the protection fuses are easy to remove.

INSTALLATION

Safer installation thanks to the 4 fixing points and to the practical height adjustment. The cover is made of nonscratch UVA-resistant engineering plastics.

PRACTICAL

The manual release is easy, intuitive and protected by a personal key. External emergency release available.

SAFETY

Obstacle detection and anticrushing safety ensured by the magnetic encoder. The encoder also manages the deceleration in the closing and opening phases and the adjustment of the gate stroke which doesn’t require a limit switch.
