R18BENC

18 Volt. Automation for gate leaves up to 1,8 m. Opening time 13 s

650R18BENC DC electromechanical gate operator with encoder. Max. gate leaf 1,8 m/200 kg (foundation box and release to be ordered separately) with cable l=2,3 m.

650R18BENCL DC electromechanical gate operator with encoder. Max. gate leaf 1,8 m/200 kg (foundation box and release to be ordered separately) with cable l=5 m.

Motor power supply

Leaf length max. (m)

Mounting

FEATURES

• residential use
• for gates leaves up to 1,8 m
• low voltage DC gate operator
• optical encoder technology
• electromechanical motor

PROS

• compact size
• virtually invisible, does not affect the design of the gate
• opening up to 360° with no additional accessories
• obstacle detection and crush prevention
• in accordance with EN 12453 standards
• works even during power outage thanks to the optional backup battery
• fast operating speed
• intensive use, ideal for use on apartment buildings and public entrances
• auto-learning of the gate stroke through optical encoder

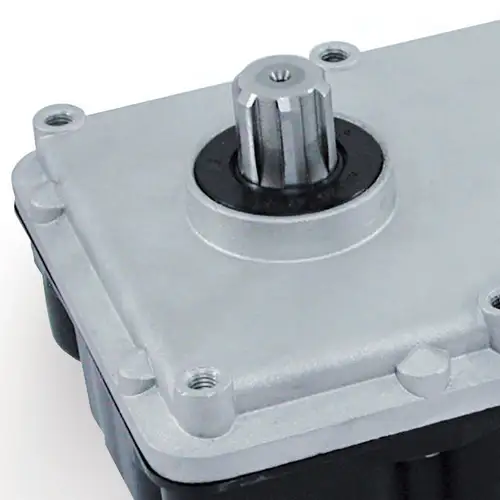

WATERTIGHT

The new watertight collar diverts rain water ensuring a complete and lasting protection.

OPENING UP TO 360°

The compact R18 gate operator is ideal where space is an issue.

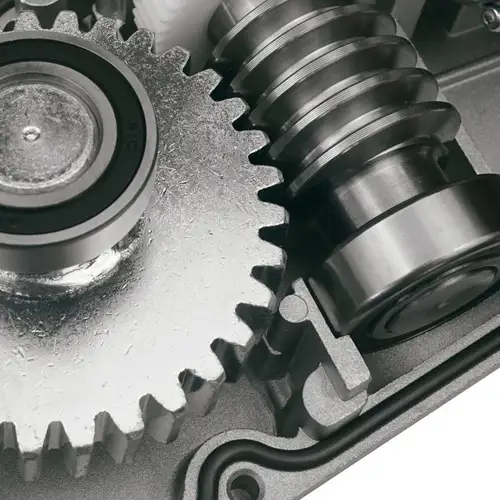

MECHANICS OF EXCELLENCE

The last stage of reduction consists of a large carbon steel gear (MOD.3) coupled with a metal worm screw which safeguards its integrity in the event of a collision.

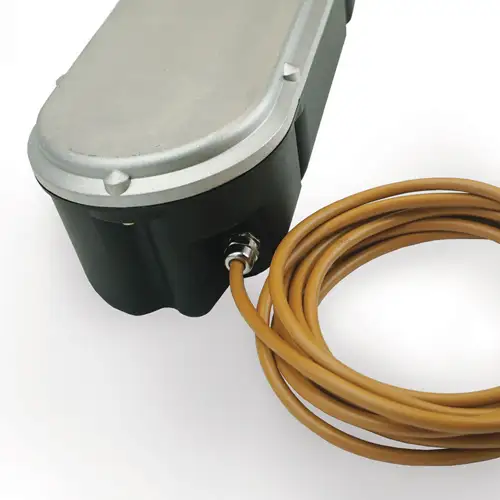

NO JUNCTIONS

The 2,3 or 5 meter cable allows to connect directly to the control unit without making junctions in the cable wells (one of the main causes of water infiltration).
